Seaview Wastewater Treatment Plant Upgrades
We’re upgrading the Seaview Wastewater Treatment Plant on behalf of Hutt City Council and Upper Hutt City Council to reduce odour and discharges of untreated or partially treated wastewater and future-proof the plant, starting with odour improvement.
If you have any questions about this work, please contact:
Wellington Water, 04 912 4400
Latest Updates
About the odour treatment renewal project
$13 million is being invested in work to improve systems at the Seaview Wastewater Treatment Plant, to help reduce the level of odour reaching the community.
The objective of the odour treatment renewal project is to improve the management of odour to ensure the plant is a safe environment and is operating within its resource consent.
We’re aware odour continues to be a problem, based on community feedback and our own independent scouting.
-
Stage 1 in 2024 saw the upgrade of the biofilter.
-
Stage 2 in 2025 covers improvements to the milliscreening ducting and building air treatment, the dryer building, external ducting and process monitoring
Treating odour
The Seaview Wastewater Treatment Plant uses physical and biological processes that harness the action of bacteria and other microorganisms to clean the wastewater. One of the side-effects of this process can be odour. The plant is designed to treat odours.

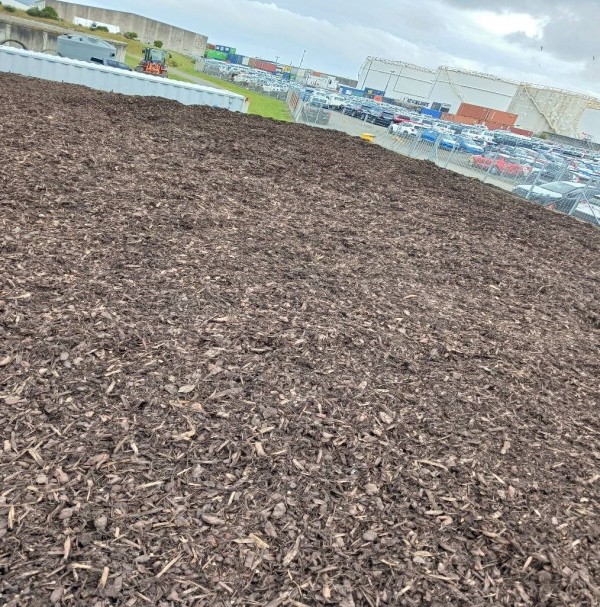

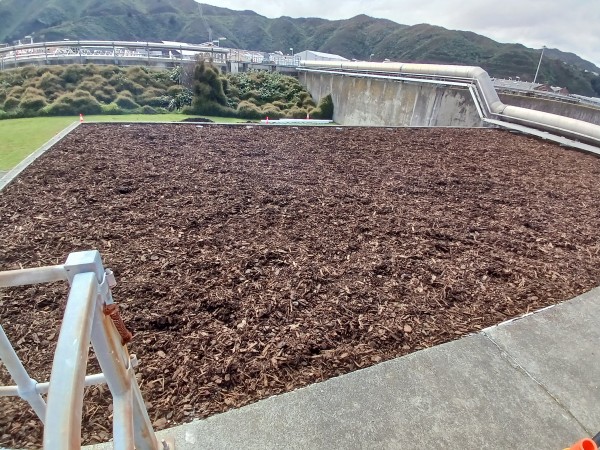

Odourous air is pumped to the biofilter, where is passes through a bed of media (mainly bark, gravel and limestone chip) containing microbes that break down the odour-causing compounds.
The Seaview plant also uses an odour neutraliser when there is a higher risk of odour, which sprays a safe chemical mix into the air to neutralise odours.

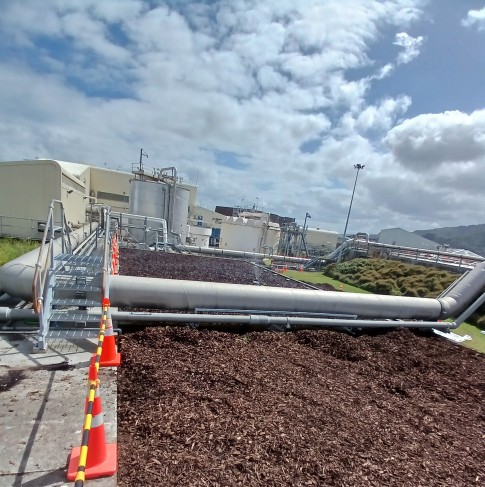

Biofliter improvements

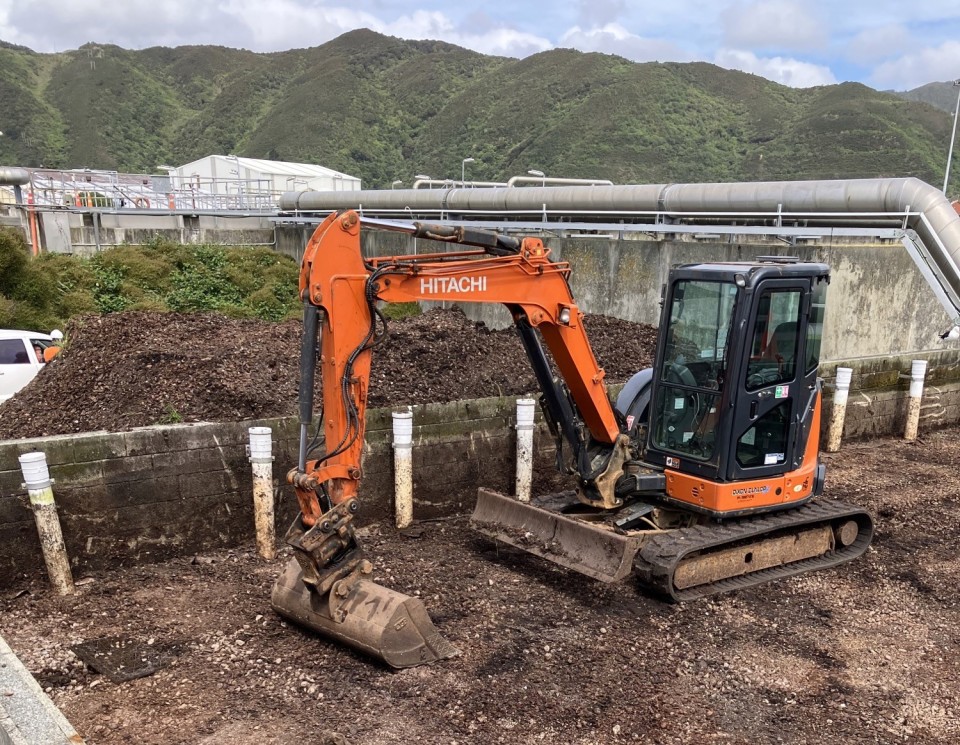

In 2024 we replaced the air distribution system under the biofilter media and at the same time improved the isolation between the six cells making up the system, to enable better management of odour during routine maintenance.
Capturing odours from the milliscreens

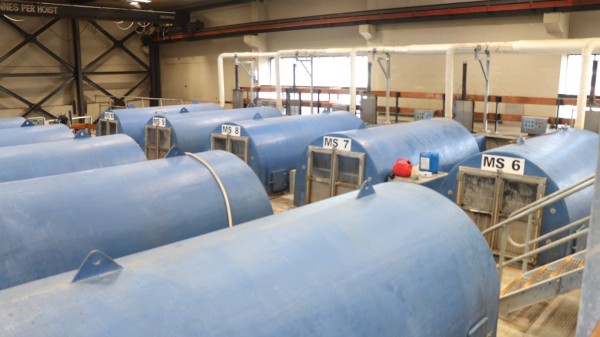

The wastewater screening room houses 10 inlet screens. These remove large solids from wastewater as it enters the plant. Find out more about the process here. This is typically the most odourous part of any wastewater treatment facility. The screens and channels are covered, with multiple ducts connected to the odour extraction system. This allows odourous air to be extracted with a fan and sent to the biofilter for treatment.
We are replacing the existing ducting and fans, to reduce odour escaping from the equipment into the building and then to outside.
Capturing and treating air from buildings
Odourous air from around the milliscreens and the sludge dryer can escape outside.
We are upgrading the ventilation system in both buildings to capture the building air for treatment before it is released.
Repair external ducting
We know that some of the odour ducts running outside the buildings (external ducts) have leaks. This means that some of the captured odour escapes, and it also reduces the effectiveness of the fans in drawing out the odour from the different process areas. We will be sealing leaks.
Process monitoring
Alongside the physical works above, we will be upgrading the site wide instrumentation and control systems for the odour extraction and treatment system (ventilation systems and biofilter) to provide for better monitoring and control.
The Seaview Wastewater Treatment Plant is aging. Much of the plant’s equipment and parts are nearing the end of their service life, which means it is more prone to service interruptions and needs more maintenance. Find more information about the plant’s performance and resource consents here

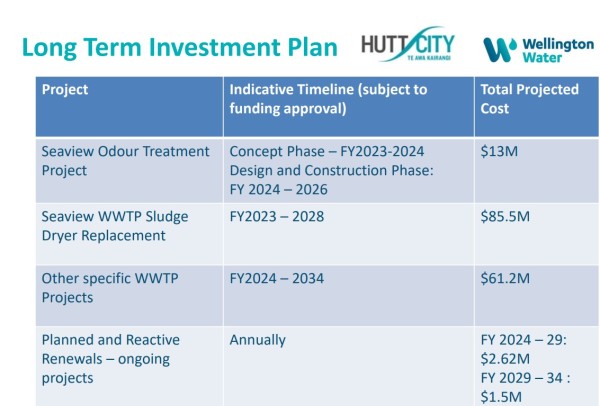

A multi-million-dollar programme of work is planned over the next six to 10 years to renew and upgrade equipment at the plant to improve its operation, subject to funding being confirmed. The current plan includes:
- Odour treatment renewal project (2024-2026)
- Sludge dryer replacement (2024 - 2028)
- Ultra-violet (UV) disinfection equipment renewal (2024 - 2026)
- Sludge pumps, aeration control system and aeration blowers (2024 - 2028)
- Clarifier ( 2026- 2028)
This work will contribute to reducing odour and discharges of untreated or partially treated wastewater, increasing capacity to handle population growth, and improving efficiency.
There is no quick fix, but Wellington Water is committed to short- and medium-term interventions to effectively manage operations of the treatment plant.
More detail on each area will be provided as planning progresses. Wellington Water is also considering options for reducing overflows to the Waiwhetū Stream and replacing the Main Outfall Pipeline.
FAQs
Is the plant meeting resource consent standards?
Why are there no covers on the aeration or clarifier tanks at the Seaview plant?
Why are the treatment plants at Hastings, Gisborne and Napier totally covered?
Why didn’t you replace the biofilter plenum (air distribution system) in December, when replacing the biofilter media??
It was in the media that the work to replace the biofilter should have started in 2021, why the delay?
Is the biofilter media replacement making a difference?
What upgrades do you have planned, how much will it cost?
Is the odour issue ever going to be fixed?
Are there any health implications with plant associated odour?
Given the projected long-term investment, is the plant's current design under review?
What odour neutraliser spray is used at the plant?
Update November 2024
We have completed stage one of the odour treatment renewal project, improving the biofilter.
Design work is underway on the next stage, capturing and delivering odourous air to the biofilter from covered areas of the plant, primarily the milliscreening room.
About the odour treatment renewal project
We’re investing $13 million in work to improve systems to capture and remove odours at the Seaview Wastewater Treatment Plant to avoid odours reaching the community.
The objective of the odour treatment renewal project is to improve the management of odour to ensure the plant is a safe environment and is operating within its resource consent.
We’re aware odour continues to be a problem, based on community feedback and our own independent scouting.
In the short term, we are prioritising areas for action that will result in capturing more odourous air from the milliscreening process and ensuring that the biofilter system is working effectively to remove odours from this air.
In the medium term, we are assessing options to improve odour management from the sludge dryer area, noting the dryer is due for replacement.
As well as replacing equipment, we’ll continue with maintenance and operational activity that we expect to contribute to reducing odour.
Treating odour
The Seaview Wastewater Treatment Plant uses physical and biological processes that harness the action of bacteria and other microorganisms to clean the wastewater. One of the side-effects of this process can be odour. The plant is designed to treat odours.
Odourous air is pumped to the biofilter, where is passes through a bed of media (mainly bark, gravel and limestone chip) containing microbes that break down the odour-causing compounds.
The Seaview plant also uses an odour neutraliser, which sprays a safe chemical mix into the air to neutralise odours.

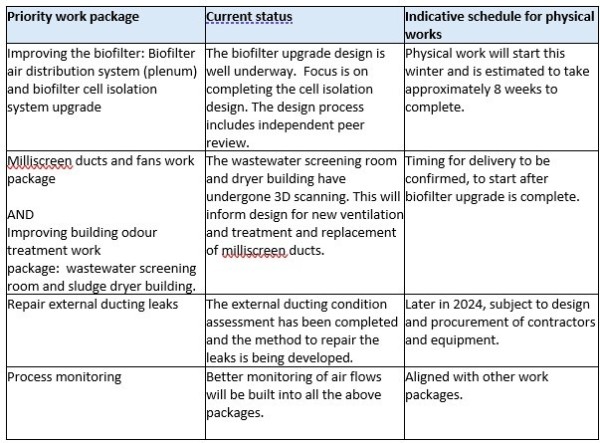

Priority work
1: Improving the biofilter

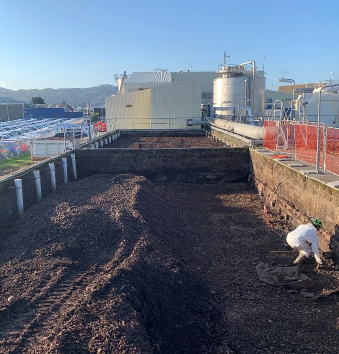

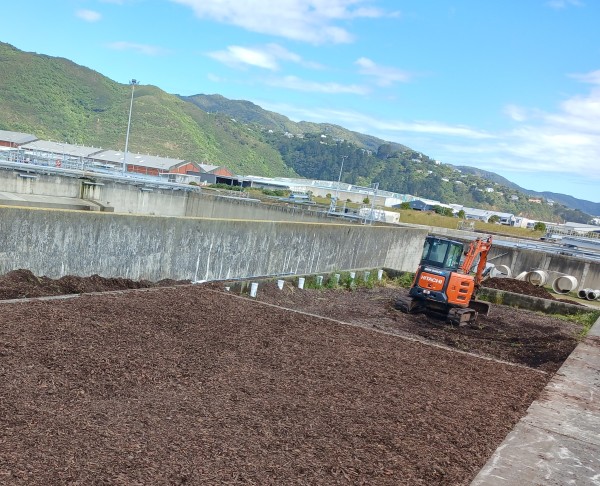

When the biofilter media was replaced in December 2023, a comprehensive mechanical and structural condition assessment was undertaken. It became evident that:

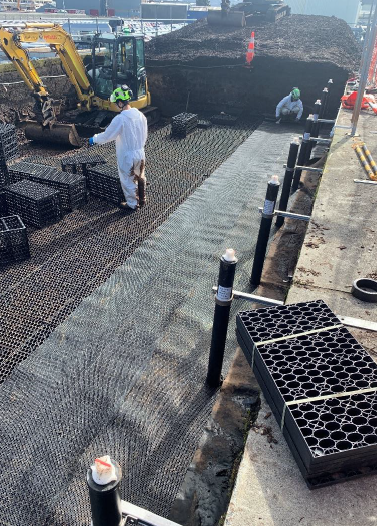

- The air distribution system (plenum) in all six biofilter cells needs replacing.
- The biofilter cell isolation system needs redesign and upgrading to isolate each of the six cells individually, this would avoid odour discharge to the environment during routine maintenance events.

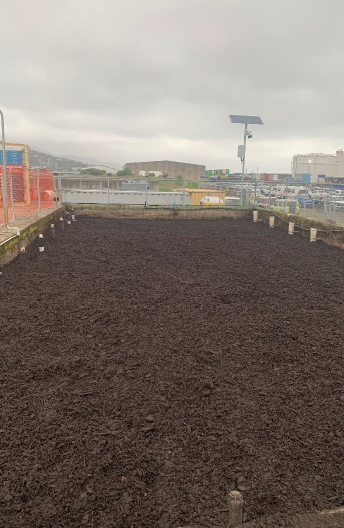

This work was completed in October 2024.
2: Capturing odours from the milliscreens
The wastewater screening room houses 10 inlet screens. These remove large solids from wastewater as it enters the plant. Find out more about the process here. This is typically the most odourous part of any wastewater treatment facility. The screens and channels are covered, with multiple ducts connected to the odour extraction system. This allows odourous air to be extracted with a fan and sent to the biofilter for treatment.
We know that there is an issue with the ducting from the milliscreens which is allowing odour to escape from the equipment into the building and then to outside. These ducts will be replaced to restore capacity.
We also plan to replace the fans that help extract odour around the plant.
3: Capturing and treating building air
While ducts capture air from the covered screens and channels, other air in the wastewater screening room vents directly to outside. We will upgrade the ventilation system to capture the building air for treatment before it is released. This is likely to involve installing new carbon air scrubbers in this building, subject to detailed design and planning being completed.
We are also looking at options for improving management of air from the sludge dryer building.
4: Repair External ducting
We know that some of the odour ducts running outside the buildings (external ducts) have leaks. This means that some of the captured odour escapes, and it also reduces the effectiveness of the fans in drawing out the odour from the different process areas. We have completed condition assessments on the external ducting and are planning how to repair leaks.
5: Process monitoring
Better monitoring of air flows will be built into all the above packages.
Phase 2
The second phase includes two work packages; sludge dryer air treatment and further external ducting, as required. Both of these would require an assessment of the effectiveness of the first phase in reducing odour issues. The sludge dryer air treatment also needs to be considered alongside plans to replace the sludge dryer.
Seaview WWTP Newsletter
February 2025
Kia ora koutou,
In this month’s Seaview Newsletter, you’ll find information on upcoming works, plant performance and operations, odour scouting, an update to our website to help you plan for potential odour, and detecting petrochemicals in the wastewater network.
Plant performance and operations

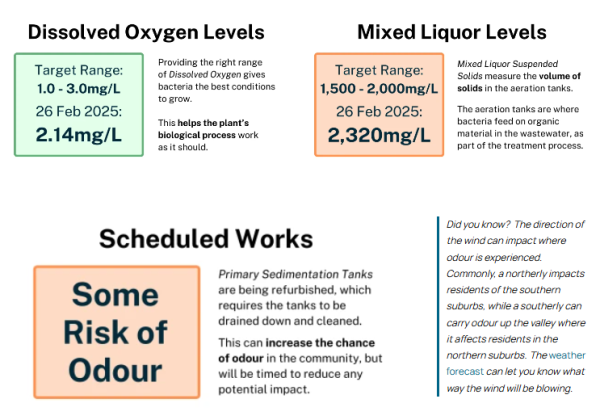

Throughout February, we’ve continued to keep a close eye on the Mixed Liquor Suspended Solids and Dissolved Oxygen levels, which are key indicators for the health and balance of the plant. When they are within target range, we can expect odour to be at a minimum, unless there is an operational issue at the plant.
Over the past 4 weeks, Mixed Liquor has remained steady slightly above the target range, and Dissolved Oxygen levels are within the target range.
Routine maintenance occurs every day at the plant, but we have had four instances of reactive maintenance which have held the risk of an increased level of odour. We have continued to communicate these through our Interested Parties list, and on social media as needed. If you or anyone you know would like to sign up to this list, please email Customer.Notifications@wellingtonwater.co.nz
Daily treated wastewater quality results such as Biochemical Oxygen Demand (BOD), total suspended solids and faecal coliform levels have been within the target range for compliance since mid-December.
Between 1 and 28 February, we received 6 odour complaints. This is steady with recent months.
Upcoming work
As you may remember, while refurbishment of Primary Sedimentation Tanks (PST) #3 and #4 was completed last year, PST #1 and PST #2 are both due for refurbishment. This refurbishment will help reduce the risk of issues moving forward, and bring PST #2 back into full operation.
Refurbishment on PST #2 began on the 27th of February and is going well. It will take around 2 weeks to complete. First, PST #2 will be isolated and drained down. Then, it will be cleaned. This stage of work is the most likely to cause increased levels of odour, so it will be completed at night. Once the cleaning is complete, the team will complete the refurbishment.
Throughout these works, we will be using the odour neutralisers as needed. We will also continue undertaking odour surveys onsite to monitor odour, and will advise of any changes or issues directly.
Planning for the refurbishment of PST #1 will be undertaken as soon as we complete the works on PST #2. We are still on track to complete the works by the end of June.
Project Update - Odour
Stage 2 – Dryer building, Milliscreening building and ducting
Work continues on the tender process. We are on track to have a contractor engaged by the end of April with construction to follow.
As a reminder, Stage 2 includes:
-
Installation of new odour treatment in the dryer building,
-
Installation of new odour treatment in the milliscreening building, and
-
Replacement of the ducting and fans for odour extraction from the milliscreens.
Project Update - Dryer Replacement

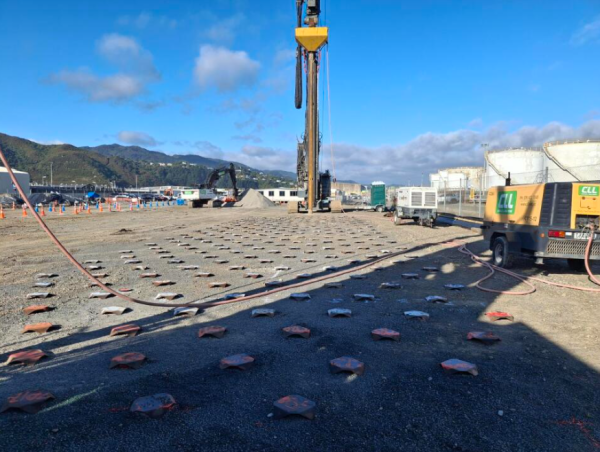

The project to replace the sludge dryer is well underway, and we continue to explore ways to speed up delivery. We are continuing the procurement process, and the team has begun evaluating expressions of interest from contractors.
Website update – helping the community predict odour levels
The level of odour experienced by the community is influenced by many variables, including internal factors like the health and balance of the plant and plant maintenance and operations, and external factors like the wind, weather, and location.
Due to this, it can't be forecast with a high level of confidence. What we can do is monitor the internal factors at the plant which can give an indication of possible odour, and communicate these clearly with residents.
In order to do this, we have updated the Seaview Wastewater Treatment Plant webpage with a section that shows these key factors at a glance, and gives you an indication of the level of odour you can expect in the week ahead.
These factors are the health and balance of the plant, and plant activity.
We monitor the health and balance of the plant through the levels of Mixed Liquor Suspended Solids and Dissolved Oxygen. Mixed Liquor Suspended Solids measures the volume of solids in the aeration tanks where bacteria feed on organic material in the wastewater. Providing the right range of Dissolved Oxygen gives the bacteria the best conditions to grow. When they are within target range, it means that the biological processes at the plant are generally healthy and well-balanced, which gives an indication of the level of odour we can expect.
Plant activity consists of general day-to-day operations, planned maintenance and urgent, reactive maintenance. Each piece of work is assessed for the risk of increased odour, and we work to give you this information with as much notice as possible.
Odour scouting
Previously, odour scouting has been undertaken around the community during live project works and when significant maintenance is being completed that has a high risk of increased odour.
With the next stage of the odour project moving through the tender process, and no maintenance with a high risk of increased odour planned, odour scouting around the community has been placed on hold.
Odour surveys at the Seaview Plant will continue, and we will continue to monitor the situation. If anything changes, we can quickly stand up the odour scouting team again.
Detecting petrochemicals to protect the plant
When dumped in the wastewater network, rather than properly disposed of, petrochemicals can have a significant impact on the biological processes at the plant. This can then cause increased odour, and be costly to clean up – in the ballpark of $50,000 each time!
As with most things, the best cure is prevention, but it’s important we also take steps to reduce the impact of petrochemicals on the plant if they do make their way into the system. To do this, we’re currently trialing a sensor that can detect hydrocarbons (commonly found in petrochemicals) in the incoming wastewater.
The end goal of the trial is to see if we can roll this technology out across the wastewater network – watch this space!
Thank you,
Linda Fairbrother
Project Lead, Major Projects
Blair Johnson
Head of Wastewater Contracts
Seaview Wastewater Treatment Plant Newsletter - January 2025
Seaview Wastewater Treatment Plant Newsletter - December 2024
Seaview Wastewater Treatment Plant Upgrades - November 2024
Seaview Wastewater Treatment Plant Newsletter - October 2024
Seaview Wastewater Treatment Plant update - September 2024
Seaview Wastewater Treatment Plant Newsletter - August 2024
Seaview Wastewater Treatment Plant Newsletter - July 2024
Seaview Wastewater Treatment Plant Newsletter - June 2024
Seaview Wastewater Treatment Plant Newsletter - May 2024
Seaview Wastewater Treatment Plant Newsletter - April 2024
Seaview Wastewater Treatment Plant Newsletter - March 2024
All Updates
Mixed Liquor and Dissolved Oxygen Levels
Throughout March, the health and balance of the plant has remains stable, ending the month with Mixed Liquor slightly above the target range and Dissolved Oxygen comfortably within target.
Unplanned works
One piece of reactive maintenance was completed after hours, which coincided with complaints from the community. We addressed and resolved this issue immediately. As the issue occurred and was resolved after hours, a notification was not sent out. We are looking into our processes to see how we can communicate after hours issues.
Works scheduled for next week
No works with an increased risk of odour are planned for this week. If anything changes, we'll inform you directly.
Mixed Liquor and Dissolved Oxygen Levels
Mixed Liquor levels have returned to target levels, and Dissolved Oxygen remains within target levels.
Unplanned works
Only one piece of reactive maintenance was completed this past week, in an area which had no impact on odour.
Petrochemicals in wastewater
Hydrocarbon odour (found in petrochemicals) was detected in the milliscreens early in the week. Fortunately this does not appear to have impacted the biological treatment process, however it is a concern. No petrol or diesel is permitted to be disposed to the wastewater network as it is a safety hazard, as well as being a risk to the treatment plant process. Please contact the trade waste team at Hutt City Council if you have any questions about what can be disposed.
Works scheduled for this week
No works are planned for the week ahead, outside of regular maintenance and operations that do not carry an increased risk of odour. If anything changes, we'll inform you directly.
Primary Sedimentation Tank (PST) #2 refurbishment
Good news as we head into the weekend - works to refurbish PST #2 have been completed, and the tank has been brought back online. We now have all 4 PST's operating at full capacity.
Mixed Liquor and Dissolved Oxygen Levels
Dissolved oxygen levels have risen slightly, back into the target range. Mixed Liquor levels have also risen slightly, now just above the target range.
Works for next week
There are no major works with an increased risk of odour scheduled for next week. We will provide an update directly if anything changes.
Please find below the latest weekly update.
Primary Sedimentation Tank #2
The refurbishment work on Primary Sedimentation Tank #2 is at the halfway point, with the team aiming to complete work at the end of next week. We’ll keep you updated if anything changes.
Urgent maintenance
On Thursday, one additional piece of reactive maintenance was completed. The work was essential maintenance to one of the pre-treatment milliscreens.
Mixed Liquor and Dissolved Oxygen
Mixed Liquor levels have dropped slightly, now back within the target range. Dissolved Oxygen is now slightly below the target level. We have also shifted the colour-coding to match the updated odour indication factors on our website.
Please find below the latest weekly update.
Primary Sedimentation Tank #2
Works are progressing well on Primary Sedimentation Tank (PST) #2. This refurbishment began yesterday, and is expected to be completed within two weeks.
This refurbishment will bring the tank back into full operation, and reduce the risk of future issues.
These works may cause increased odour, so we are doing all we can to reduce the risk. Wherever possible, works are being completed under cover and at night. We are also using the odour neutralisers when necessary.
We will also continue undertaking odour surveys onsite to monitor odour, and let you know as soon as possible if there are any issues.
Urgent maintenance
We can confirm that Thursday’s urgent maintenance work was completed that day. Thank you for your patience while we completed this important work.
Mixed Liquor and Dissolved Oxygen
Both these measures remain stable, with Dissolved Oxygen within target range and Mixed Liquor slightly above the target range.
Mixed Liquor and Dissolved Oxygen
Mixed Liquor has remained steady, closer to the target range. Dissolved Oxygen remains within the target range. These are a good indication of the health and balance of the plant, and when they are within target range we can expect odour to be at a minimum, unless there is an operational issue at the plant.
Upcoming works
As you may remember, while refurbishment of Primary Sedimentation Tanks (PST) #3 and #4 has been completed earlier this year, PST #1 and PST #2 are both due for refurbishment. This refurbishment will help reduce the risk of issues moving forward, and bring PST #2 back into full operation.
Refurbishment on PST #2 is scheduled to begin at the end of next week, and will take around 2 weeks to complete. During this time, there will be an increased risk of odour, which we will work to mitigate by completing works with a higher risk of odour at night, and using the odour neutralisers. We’ll provide more details on this next week.
We will also continue undertaking odour surveys onsite to monitor odour, and will advise of any changes or issues directly.
Planning for the refurbishment of PST #1 will be undertaken as soon as we complete the works on PST #2. We are still on track to complete the works by the end of June.
Milliscreen #1 work
Earlier today we notified the public of the urgent repair of Milliscreen #1. We can confirm that this repair has been completed, and want to thank you for your understanding while the team undertook this work.
Recent maintenance
Thanks for your patience while the team have worked to complete the unplanned maintenance needed late last week and over the weekend. Works have now been completed on both issues, and there is no maintenance planned for this week over and above the normal day-to-day operational requirements.
We appreciate that it’s frustrating to not receive a warning of any increased odour. We’re doing all we can to give you as much notice as possible of any planned maintenance that may cause increased odour, and fast notifications of any live, unplanned maintenance that carries a similar risk.
It’s also important to note that Seaview is an aging plant, that requires daily maintenance. The team do their utmost to notify of any risk of increased odour, but there is the chance that unexpected odour may occur during routine maintenance.
We will always do our best to be proactive and reach out to you if this happens, and appreciate your understanding.
Odour scouting
Previously, odour scouting has been undertaken during live project works and when significant maintenance is being completed that has a high risk of increased odour. With the next stage of the odour project moving through the tender process, and no maintenance with a high risk of increased odour planned, odour scouting around the community has been placed on hold.
Odour surveys at the Seaview Plant will continue, and we will continue to monitor the situation. If anything changes, we can quickly stand up the odour scouting team again.
Mixed Liquor and Dissolved Oxygen
Mixed Liquor has dropped slightly, closer to the target range. Dissolved Oxygen remains within the target range. These are a good indication of the health and balance of the plant, and when they are within target range we can expect odour to be at a minimum, unless there is an operational issue at the plant.
After a recent slight rise, Mixed Liquor Suspended solids have remained stable slightly above the target range. Dissolved oxygen has remained within the target range. These are strong indications of how healthy and balanced the bacterial processes at the plant are. When they are within (or close to) the target range we can expect odour to be at a minimum, unless there is an operational issue at the plant.
Odour scouting has continued around the surrounding suburbs, with odour detected downwind of the plant which may have been linked to normal plant maintenance.
For those who missed last week’s newsletter, following the inconclusive results of the Odour Neutraliser Trial Shutdown Survey, we made a recommendation to Hutt City Council that the odour neutralisers only be used at times when there is a significant risk of increased odour levels, i.e. when plant maintenance is being completed. Hutt City Council have agreed with this recommendation, effective immediately.
While the overall results were inconclusive, the individual feedback was very helpful. We want to thank everyone who took time out of their day to share their experience – it is sincerely appreciated.
With work completed on Primary Sedimentation Tank (PST) #3 on Jan 23rd, the Seaview Wastewater Treatment Plant now has 3 of the 4 PSTs in full operation, with PST #2 functioning, but at a lower capacity.
PST #1 and #2 are also due for refurbishment, which will help reduce the risk of any issues moving forward and will bring PST #2 back into full operation. This work is due to be completed by the end of June 2025.
The site team are continuing regular odour surveys to ensure that we can respond quickly if there is any increased odour. There has not been any increased odour observed this week, with the plant operation running well and the PST work not causing any significant odour issues.

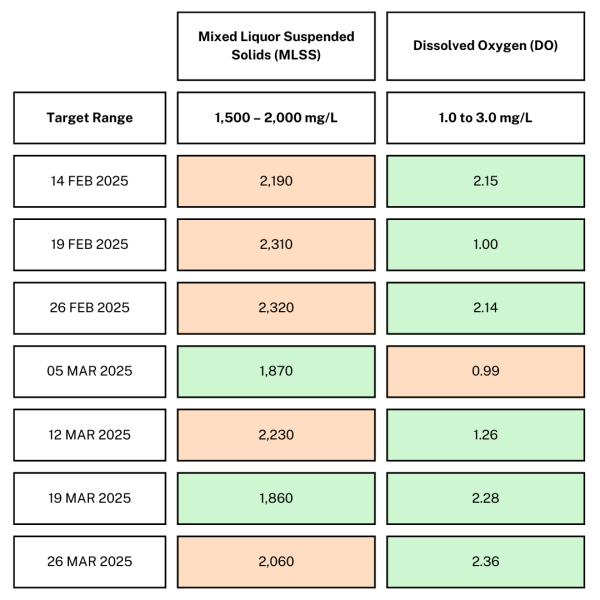

The latest update on Mixed Liquor and Dissolved Oxygen levels shows them holding steady within their target ranges, of 1,500 – 2,000mg/L for Mixed Liquor Suspended Solids, and 1.0 to 3.0mg/L for Dissolved Oxygen. These are strong indications of how healthy and balanced the bacterial processes at the plant are, which in turn gives us a good indication of odour levels.
|
Mixed Liquor Suspended Solids |
Dissolved oxygen |
Target range |
1500 – 2000 mg/L |
1.0 to 3.0 mg/L |
23 Oct 2024 |
5,070 |
0.67 |
5 Nov 2024 |
5,230 |
0.83 |
19 Nov 2024 |
4,800 |
0.67 |
4 Dec 2024 |
4,350 |
0.69 |
18 Dec 2024 |
2,560 |
2.11 |
25 Dec 2024 |
2,830 |
2.88 |
1 Jan 2025 |
1,580 |
3.51 |
8 Jan 2025 |
2,000 |
2.52 |
15 Jan 2025 |
1900 |
2.5 |
23 Jan 2025 |
1950 |
2.45 |
It’s been a busy week at Seaview Wastewater Treatment Plant, with work completed on Primary Sedimentation Tank (PST) #1. This included draining down, repairing, and refilling the tank. Work was carefully timed so that the impact of any offensive odour on the community was minimised. The same work is currently underway on PST #3, and should be completed by this Wednesday 22nd.
To be able to respond quickly if there is increased odour, we will be increasing the number of odour surveys completed each day. Currently, there have not been any reports of increased odour.
In last week’s update, we provided a chart of recent Mixed Liquor and Dissolved Oxygen levels – these are strong indications of how healthy and balanced the bacterial processes at the plant are, which in turn gives us a good indication of odour levels.
We’ll continue updating you on these each week. Generally speaking, ‘good’ looks like a range of 1,500 – 2,000mg/L for Mixed Liquor Suspended Solids, and 1.0 to 3.0mg/L for Dissolved Oxygen. It’s positive to see the improvement made in both measures over the past few months, shown in the table below:
|
Mixed Liquor Suspended Solids |
Dissolved oxygen |
Target range |
1500 – 2000 mg/L |
1.0 to 3.0 mg/L |
9 Oct 2024 |
5,760 |
0.69 |
23 Oct 2024 |
5,070 |
0.67 |
5 Nov 2024 |
5,230 |
0.83 |
19 Nov 2024 |
4,800 |
0.67 |
4 Dec 2024 |
4,350 |
0.69 |
18 Dec 2024 |
2,560 |
2.11 |
25 Dec 2024 |
2,830 |
2.88 |
1 Jan 2025 |
1,580 |
3.51 |
8 Jan 2025 |
2,000 |
2.52 |
15 Jan 2025 |
1900 |
2.5 |
Treated wastewater quality such as Biochemical Oxygen Demand (BOD), total suspended solids and faecal coliform levels are still within the target range for compliance, which is another good indicator of the overall health of the plant.
Please note the odour neutralisers are still currently being used because of the work being undertaken on the primary sedimentation tanks.
Operations at the plant were largely stable over the holiday period, except for a minor issue with the outfall pump station resulting in a one-hour discharge of fully treated wastewater to Waiwhetū Stream on 27 December and a fault in primary sedimentation tank (PST#2) on 2 January 2025 and PST#3 on 7 January.
Work to drain and clean PST#2 in preparation for the repair is underway. This will be followed by an assessment of the scope of the work to repair the fault. Work on the other primary sedimentation tanks will be staged to get them back in to service as soon as possible. Some adjustments to the plant process have been made while these repairs are underway.
Our monitoring of odour indicates that levels have been minimal over the holiday period. This coincides with the operation of the plant returning close to normal, with key indicators for the health and balance of the plant within target range during this period.
Mixed Liquour Suspended Solids measure the volume of solids in the aeration tanks where bacteria feed on organic material in the wastewater. Providing the right range of Dissolved Oxygen gives the bacteria the best conditions to grow. When the level of these indicators are within target range, the plant is healthy and odour levels minimal.
|
Mixed Liquor Suspended Solids |
Dissolved oxygen |
Target range |
1500 – 2000 mg/L |
1.0 to 3.0 mg/L |
9 Oct 2024 |
5,760 |
0.69 |
23 Oct 2024 |
5,070 |
0.67 |
5 Nov 2024 |
5,230 |
0.83 |
19 Nov 2024 |
4,800 |
0.67 |
4 Dec 2024 |
4,350 |
0.69 |
18 Dec 2024 |
2,560 |
2.11 |
25 Dec 2024 |
2,830 |
2.88 |
1 Jan 2025 |
1,580 |
3.51 |
8 Jan 2025 |
2,000 |
2.52 |
Since 22 December, faecal coliform levels have been within the target range for compliance. This is another indicator of the recent improvement in the overall health and balance of the plant.
To minimise odour impact over the Christmas New Year period we paused non-critical work. We will restart our programme of maintenance on the plant next week. This is critical to the continued efficient operation of the plant. We will keep you informed of this work and any risk of increased odour that may result. With the plant operating under normal conditions, we have stopped the transportation of dewatered sludge to landfill and are only taking dried sludge.
Current status of the plant
We have made good progress in the past month and the plant is now close to normal operations. Our recent monitoring has indicated that with the reduction in sludge levels at the plant, odour levels have also generally reduced.
Two key indicators of the health and balance of the biological process at the plant are levels of Mixed Liquor Suspended Solids (MLSS) and Dissolved Oxygen (DO). MLSS measure the volume of solids in the aeration tanks where bacteria feed on organic material in the wastewater. Providing the right range of Dissolved Oxygen (target range 1 to 3), gives the bacteria the best conditions to grow.
Below is a summary of how these indicators have been tracking since the outages with the dryer in September and October.
|
Mixed Liquor Suspended Solids (MLSS) |
Dissolved oxygen (DO) |
9 October |
5,760 |
0.69 |
23 October |
5,070 |
0.67 |
5 November |
5,230 |
0.83 |
19 November |
4,800 |
0.67 |
4 December |
4,350 |
0.69 |
18 December |
2,560 |
2.11 |
While there is still some work to do to return the plant to the level that it was operating at before the incidents with the dryer, we are pleased to see a marked improvement in both indicators.
Operations over the holiday period
Preliminary cleaning of Primary Sedimentation Tank #2 has been completed in advance of repairs to be undertaken after parts arrive in mid-January. Work on the repair to Blower #2 has also been completed.
To keep the plant stable and minimise odour, we will be limiting planned maintenance and pausing non-critical work at the plant over the holiday period. The trucking of dewatered sludge to landfill will also stop from end of day Friday 20 December.
Routine operation of the plant and dryer will continue. Veolia, our plant operators will be monitoring key process points of the plant during the holiday period. Work has been undertaken to build resilience to plant operations, with resources on call and escalation processes in place to respond to any incidents that may arise.
The weekly updates on odour levels and plant operations recently provided will stop over the holiday period. We will follow our usual procedures for notification to the community of any unplanned outages, maintenance or operational incidents at the plant.
We continue to make progress on returning the plant to normal operations.
Our monitoring of odour over the past week has indicated that odour levels appear to be reducing.
Progress with clearing the backlog of sludge is steady and we will continue to truck dewatered sludge to landfill until 20 December. We expect to complete cleaning of the primary sedimentation tank #2 by 18 December. The trial to optimise the processing of sludge before it moves into the centrifuges and dryer has helped with increased production of dewatered sludge. This is an important step towards restoring the plant to a balanced state.
As advised, we will be pausing planned maintenance and other activities over the Christmas/New Year break to minimise odour levels. We are working with Veolia on the plan to manage plant operations during this period.
We will be sending out a final Seaview Wastewater Treatment Plant newsletter for the year around 20 December. This will include details of this plan, as well as an update on the actions arising from the community meeting held on 25 November.
The trial to shutdown the odour neutralisers is continuing. Thanks to all who have completed the survey to date. Response numbers have slowed down and we encourage you to share the link to the survey to people impacted by odour levels from the plant. Please continue to submit responses via the survey. This will help us to assess the impact of not using the odour neutraliser on odour levels experienced by the community.
For more information about the trial and update on latest survey results, see here.
As advised in our update on 6 December 2024, urgent maintenance is being undertaken on one of the primary sedimentation tanks (PST). The PSTs process solids before they are sent off to sludge treatment.
Work will be starting on 9 December 2024 to clean PST #2 and is expected to take 3-4 days. The work is an important part of our proactive programme of maintenance to keep the plant operating efficiently, especially with the summer period approaching.
There is a risk of increased odour at the plant while this maintenance work is being undertaken. We are hopeful that odour will be minimised with the good progress made in clearing the backlog of sludge, changes made to improve the efficiency of the process and progress to restoring the balance of the plant.
We will monitor odour levels closely while this work takes place. Please contact the regulator, Greater Wellington Regional Council if you experience an increase in noticeable odour.
Work is continuing on restoring the plant to normal operations which is vital to reducing odour levels.
The dryer is back in operation, and we are making progress with clearing the backlog of sludge. We resumed trucking dewatered sludge to landfill on 3 December and expect to continue doing this until 18 December. This is being done to supplement the dryer and get the plant to normal operations as quick as we can. There is a risk of increased odour at the plant while this process is being carried out. We have erected scaffolding and cover in the area where dewatered sludge is being loaded and are using two fully covered bins that have been transferred from Porirua. This will help reduce odour levels during the load out and trucking of sludge to landfill.
We have additional consultants on site working closely with Veolia to assist with proactive monitoring of the operation of the plant. They are also making recommendations on ways to further improve efficiency as well as any changes that could help to accelerate restoring balance of the plant.
We are working through the recommendations made for improvements in the sludge removal processes. These are focused on optimising the processing of sludge before it moves into the centrifuges and dryer. Early results of this work are positive and will keep you updated on progress.
We are expecting the arrival of replacement parts for Blower 2 on 16 December. When the repair is completed around 19 December, all three blowers will be back in service at the plant.
Urgent maintenance is required on one of the primary sedimentation tanks. This is part of a proactive programme of maintenance critical to the continued efficient operation of the plant. This work will be starting over the next two weeks. There is a risk of increased odour while this work is being carried out. We have plans to minimise this and will be monitoring odour levels closely during this time.
We will be pausing work on the tanks as well some other activities over the holiday period to minimise odour levels. We are also planning to not truck dewatered sludge to the landfill during this period. Routine operation of the plant and dryer will continue.
A well-attended community meeting on the Seaview Wastewater Treatment Plant on Monday 25 November heard from the Mayor of Hutt City Council who outlined that the Seaview Wastewater Treatment Plant is a top priority for Hutt City Council and that the level of odour is completely unacceptable. This has been made clear to Wellington Water and through them Veolia.
Both HCC and UHCC have committed to $230M over ten years of investment in the plant. With this funding and workplans the odour levels will be mitigated although not completely eliminated due to the nature of the plant’s operation
Wellington Water Chief Executive Pat Dougherty and senior leaders of Wellington Water, along with plant operators Veolia apologised for the unacceptable odour from the plant. The most recent increase in odour was caused by two small fires and equipment failure in the sludge dryer in September.
Veolia said this was a challenging and an unacceptable situation. They acknowledged and recognised their accountability to deliver the right outcomes in the community. They also said the community could expect better and was determined to deliver better. They noted this won’t be easy as there are similar ageing infrastructure challenges across New Zealand every day.
The meeting also heard about Wellington Water and Veolia’s plans to replace the sludge dryer and make other improvements (further details on the website here)
Pat Dougherty said the sludge dryer is due to be replaced in three to four years. He said that even when the old equipment has been replaced, there may be some odour. He said Wellington Water is doing everything it can to get the plant running properly, reducing the likelihood of odour reaching people’s homes, but it is not possible to guarantee the odour will stop indefinitely.
There was discussion about a number of issues including the odour neutraliser spray in use, funding, planning for the future and the impact on health and wellbeing, property values and businesses.
Wellington Water agreed that, in response to the community’s wishes, it would trial turning off the odour neutralisers in use at the plant. More details will be provided once plans are confirmed.
Wellington Water agreed to investigate improving communications drawing on the experience in relation to the Bromley Wastewater Treatment Plant in Christchurch.
Actions from the meeting:
Odour monitoring at the plant – looks at ways to communicate regularly on status on the WWL website. Consider network connected hydrogen sulphide and other monitoring such as wind direction.
Communications – more regular updates including looking at ways to reach people (letterbox drop). Consider interactive map with condition and work plan for each pond (traffic light system)
Trial not using odour blasters with advance notice to the community on days this would be happening. This information would be published on the WWL website.
Community concern about having to continually raise the odour issue by lodging complaints will be better managed through more regular communications.
Seaview Wastewater Treatment Plant - Community Meeting Notes, Actions, Presentation Slides, and Talking Notes - 25 November 2024
Plant operation update
The sludge dryer, which has an important role in reducing the volume of sludge before it is taken to landfill, is now back up and running at the plant. This will improve the efficiency of plant operations and help minimise odour.
With the dryer back in operation, we have reduced the amount of sludge being transported to landfill but this will continue intermittently to reduce solids in the process, particularly when the dryer is taken down for maintenance. We still have odour neutralisers located where the sludge is loaded into the trucks, to minimise odour as much as possible.
Maintainance work begins today on one of the primary sedimentary tanks, which involves draining down the tank and moving solid matter. This may cause odour, but we have mitigations in place including a deodoriser to reduce the smell as much as possible. We’ll be regularly monitoring the odour while the work takes place.
Please be assured we’re doing everything we can to minimise odour. We’ll keep you updated on any key operational updates, and provide another update next week.
Work continues to reduce the backlog of dewatered sludge, before bringing the sludge dryer back into service – scheduled for early next week, but earlier if possible.
We’ve increased the amount of sludge being transported to landfill, from around 8 tonnes, to 50 tonnes per day. This helps us reduce the sludge backlog quicker, support efficient plant operations and minimise odour as we head into summer. The sludge backlog was a result of the sludge dryer outages that happened in September and October.
The sludge transportation is likely to result in increased odour as we load the trucks. We have moved one of the odour neutralisers at the plant to where we are loading the trucks to reduce the odour as much as possible. We apologise for any increased odour that you may have experienced at the plant since this work started. We expect odour to improve early next week when we bring the sludge dryer back into service.
Our team are also investigating potential issues with one of the primary sedimentary tanks and one of the blowers at the plant. These issues could impact the overall performance of the plant. We are working as fast as we can to have these issues resolved as soon as possible.
Please be assured we are doing all that we can to reduce odour levels. We have brought in an external expert to provide additional support and focus on plant operations and to provide recommendations to accelerate the solids removal process.
We’ll continue to closely monitor the situation and have another update to share early next week.
Over the past month, we have been using a chemical supplement to help accelerate the level of sludge removal at the plant.
While this is a standard practice for operation of the plant, it is the first time that we have used this for a sustained period, in this amount and for this part of the treatment process.
The chemical supplement has been successful in reducing the backlog of sludge at the plant because of the outages in September. The biological process remains stable, however, use of this supplement to clear the backlog has disrupted the operation of the sludge dryer.
We have been working hard to keep the dryer running, however this chemical supplement process has changed the characteristics of the dewatered sludge that is fed into the dryer. This is creating significant issues with components in the system and resulted in a shutdown of sludge drying over the weekend.
Dewatering has continued but the dryer is not in service. There is currently a backlog of dewatered sludge that must be cleared before the dryer can be brought back online.
We will be increasing the volume of dewatered sludge transported to landfill per day to clear this backlog. The trucks will be wrapped and sealed during the transportation process but there is a risk of increased odour during loading into the trucks. We will do our best to mitigate this and are trialling options to stabilise the dewatered sludge to minimise odour before it’s loaded into the trucks.
Our operations team have advised that use of the chemical supplement is no longer sustainable. Our priority is to minimise the risk of increased odour levels returning to the plant. We are working hard to keep the amount of sludge at the plant at a manageable level as the plant continues progress to a return to normal operations.
We acknowledge the events in September and early October were very unpleasant and distressing to the community. Please be assured we are doing all that we can to prevent a recurrence. We advise residents to contact the regulator, Greater Wellington Regional Council if they experience an increase in noticeable odour.
We are making progress with restoring the plant to normal operations following the sludge dryer outages.
We thank the community for your patience as we continue this work. While it’s taking longer than expected, the plant’s biological process, critical to the health and balance of the plant, is tracking in the right direction to the desired target range. This is vital to reducing and keeping odour levels at a minimum.
We continue to work closely with the plant operator Veolia, to monitor and maintain continuity of the sludge dryer service and to improve contingency planning.
Our observation of odour has shown that levels have continued to reduce in the past two weeks. We acknowledge the levels have been unacceptable and we will continue to do all we can to reduce levels. We are focused on managing the operation of the plant to minimise the risk of further equipment outages.
We are continuing work on reducing odour levels and restoring the plant to normal operations following the sludge dryer outages.
As part of regular maintenance on the sludge dryer yesterday, we identified a fault with an electrical component (variable speed drive) of one of the fans. This was replaced with a spare held on site, but it did require the dryer to be offline to enable this work to be done.
While sludge levels are still elevated, results from our daily monitoring of the plant show the treatment process is stable and this unplanned maintenance work did not have a significant impact on the plant.
We appreciate the impact of odour from the plant for residents and business. We assure you that we are working as fast as possible and doing all we can to reduce odour.
Thank you for your ongoing patience and understanding as we continue work to stabilise the health of the plant, returning it to normal operations.
We are continuing to monitor odour levels with on-site surveys in and around the plant.
The backlog of dewatered sludge is reducing, and we are continuing to transfer it to landfill. The sludge dryer operation otherwise is functioning as expected.
We want to assure the community we are doing all we can to manage odour levels. We also have an additional odour blaster on site to help.
From next week, some essential maintenance works will resume, to support the plant’s biological process.
In the meantime, we will keep the community updated on any developments and provide odour notifications as necessary.
Please note, the recent spike in odour levels is not attributable to work on the biofilter replacement upgrade. These works aim to improve the site’s overall odour control performance and minimise ongoing odour issues experienced from the site.
We sincerely apologise for the increased odour that the community has experienced over the past week. The odour levels have been unacceptable, and we regret it is taking longer than we would like to reduce levels and minimise impacts on the community.
Given the circumstances, we are working as fast as possible and doing all we can to reduce odour levels. We have suspended work on planned maintenance and upgrade activities that could contribute to additional odour levels. We are also exploring options to improve odour levels, including installing an additional odour neutraliser.
While we focus on stabilising plant operations and returning the plant to normal service, the odour levels are expected to decrease and become less noticeable. Note, this will be dependent on localised weather conditions and especially wind direction.
We will continue to engage with the community and keep them informed of any developments. We advise residents to contact the regulator, Greater Wellington Regional Council if they experience an increase in noticeable odour.
ENDS
We’re making great progress with upgrading the biofilter air distribution system at the Seaview Wastewater Treatment Plant.
Our contractors Wellington Pipelines Ltd have completed over half of the work and we’re on track to finish the works by November 1.
The biofilter upgrade is the first phase of works we’re undertaking to improve overall odour management at the plant. We’re doing these improvements on behalf of Hutt City Council and Upper Hutt City Council and they are expected to be completed in 2026.
Here are some images showing progress.

Second cell excavation

New crate plenum installation

New isolation valves in place during plenum installation

Completed cell
Work to upgrade of the biofilter air distribution system at the Seaview Wastewater Treatment Plant begins today, Monday 19 August. This is a key part of improving the management of odour at the plant. This work is expected to be completed by early November.
We advise that there may be noticeable odour coming from the plant while these works are carried out. We are managing the work to mitigate the risk and will be operating the odour neutraliser. We will be monitoring odour on site and outside the plant boundary. Find out more about the work here This is a key part of improving the management of odour at the plant. This work is expected to be completed by early November.
We advise that there may be noticeable odour coming from the plant while these works are carried out. We are managing the work to mitigate the risk and will be operating the odour neutraliser. We will be monitoring odour on site and outside the plant boundary.
Find out more about the work under 'Odour Treatment' in the menu bar.
We ask for your patience with any short-term increase in odour while we make these long-term improvements to the plant.
Thank you to members of the community, council staff and councillors, who attended a briefing on upcoming work to renew the odour control system at the plant on Tuesday 30 July.
Read the presentation delivered at the meeting here
.
The Primary Sedimentation Tank #3 (PST3) will be gradually drained from 12:00 on Wednesday 31 July 2024 in preparation for cleaning on Thursday 1 August 2024.
Please note there may be noticeable odour coming from the plant while these works are carried out. To mitigate this the Odour Suppression System/Odour Blaster will be operating and the site will be monitored.
We had 20 people attend the recent public tour of the Seaview Wastewater Treatment Plant on Saturday, June 22.
Two groups were guided through the plant following a welcome and health and safety briefing. Wellington Water’s Chief Advisor Wastewater Steve Hutchison provided a history of the plant, its construction and networks connections.
The plant operator Veolia, facilitated the walk around the plant explaining the different aspects of treatment and treatment processes. The tours ended with a Q & A session.
Invitation to Seaview Wastewater Treatment Plant Tour
Wellington Water invites you to tour the Seaview Wastewater Treatment Plant to see first-hand how the plant works and where upgrade work will be taking place.
- Saturday 22 June
- 1.30 pm to approx. 3.30 pm
- Seaview plant main entrance, Waterman Street, Seaview
- You must book in advance as numbers are limited
Please note that the tour involves walking and climbing a number of stairs so if you have mobility issues it may not be suitable for you. The tour is also not suitable for children under the age of 12.
For health and safety reasons, people must wear long pants, long-sleeved tops and closed shoes. We will provide safety equipment in the form of hard hats, hi-vis vests, safety glasses and disposable gloves, which must be worn.
Most of the tour route is outside, so jackets or rain gear may be required if it’s showery. If the weather forecast is bad, the tour will be postponed to Saturday 6 July. Numbers are limited so if there is a lot of interest we will add another date.
RSVP
Please book your place on the tour by emailing community@wellingtonwater.co.nz with your name, number of people attending, and your contact number in case of postponement. Please RSVP before Friday 14 June.
A community meeting on Thursday, 21 March discussed plant performance and Wellington Water's plans for upgrades to improve odour control.
Here is the presentation from the meeting - Seaview CLG March 21 2024
Here is the Greater Wellington Regional Council report discussed at the meeting
There were some requests for information at the meeting and these will be responded to shortly.
The works were initially expected to be completed by late January but the project team managed to reinstate the biofilter media prior to the Christmas break.
All the six cells of biofilter media are replaced and now commissioned.
Please note, While the biofilter media has been replaced, it will take a short period of time to bed in and become fully functional and 100 percent effective.
These works are a small first step to improve odour management, Hutt City Council has also included $13 million of proposed upgrades and improvements in the draft Long Term Plant.
This investment will support the long-term solution to odour management at the treatment plant.
We’ve made great progress with the biofilter media replacement at the Seaview plant.
These important works to improve odour management at the plant are ahead of schedule and we’re on track to complete the works by January 25.
From tomorrow, December 22, works will stop for the holidays and resume on January 10, 2024.
We acknowledge the patience of the local community and businesses, we look forward to completing the works for better odour management at the plant.
The team have made excellent progress after managing to replace the biofilter media in both cells 3 and 4.
This means 4 of the 6 cells of the biofilter media are replaced and commissioned.
The team have now moved to cell 5 to begin the process of excavation and inspection, before installing the new media.
Further updates will be provided as the project progresses.
Biofilter media - cells 2 &3 completed
Biofilter media - cell 4 completed
Thank you to everyone who turned up at the Seaview community meeting on Wednesday night, your attendance and views were much appreciated.
We are committed to resolving the odour issue and will be working with Hutt City Council to get the necessary upgrades prioritised.
We know you want us to keep investing in the local wastewater system. Hutt City Council will be considering odour control upgrades as part of their long-term plan meeting next Tuesday.
Hutt City Council has proposed $13 million dollars to be spent over the next 3 years on the odour control upgrade work, along with other significant upgrades for the Seaview Wastewater Treatment Plant.
The team have successfully commissioned Cells 1 and 2 today. This means that both Cells are now operational and treating the odorous gases as designed (Image 1).
The team have moved the digger into Cell 3 and commenced excavation of the old media this afternoon (Image 2). Next week Cell 3 will be excavated and inspections will be performed before installing the new media.
Further updates will be provided as the project progresses.
Image 1 - Cells 1 and 2 complete Image 2 – Cell 2 complete and digger in Cell 3
At the community meeting, Council and Wellington Water acknowledged that it's been unpleasant, inconvenient, and distressful for many who live in the vicinity, and discussed plans to address the odour issue at the Seaview wastewater treatment plant.
Te Rūnanganui o Te Āti Awa ki te Upoko o Te Ika a Māui, Waiwhetu marae and Wellington Tenths Trust/Palmerston North Māori Reserve Trust were in attendance as were many residents. The Hutt Park Holiday Village (Top 10) also attended. Deputy Mayor Lewis, Councillors Edwards, Brown, Dyer and Mike Fisher Petone Community Board Chair also attended along with staff from HCC, WW and GWRC. Seaview Marina and other businesses were also in attendance.
The presentation (815KB PDF)from Wellington Water explained the investigation undertaken to date and its outcome that biofilter media had reached the end of its lifespan and requires replacing. It was explained that an attempt to isolate and contain the first section of the biofilter as it was removed had not worked as hoped and resulted in the recent offensive odour.
Assurances were given by Council that we would do all we can to address the odour issue in the short and medium term.
Council is considering the draft Long-Term Plan, which now has a significant investment of $13 million, to significantly improve the situation with replacement of aged equipment at the plant. This investment has been brought forward to the next three years.
Mana Whenua present requested a separate briefing and for improved communications with them. Residents and businesses expressed frustration with the time it is taking to address the issue and, in the meantime, having to live with the offensive smell.
Hutt Park Holiday Village was critical the work is being undertaken during their busiest period, reporting a significant number of negative online reviews and direct complaints from customers about the smell.
Wellington Water expects this work will be completed by 25 January by which time the odour is expected to have significantly abated.
Councillors recommended that residents continue to log complaints via customer@wellingtonwater.co.nz when they notice the smell and encouraged them to make submissions to the Long-Term Plan process currently before Council. An online survey to gather feedback will appear on Hutt City Council's Annual Plans and Long Term Plans page on 2 April 2024 and remain open throughout April.
Works to replace the biofilter media are progressing well with the contractor successfully installing the new media into Cell 1 last week. (Image 1)
The digger has now been moved to Cell 2 (Image 2) and will begin removing the old media which will then be transported to landfill for disposal.
The replacement media for Cell 2 will be delivered this week and the team are optimistic of installing this ahead of schedule to fully commission cells 1 & 2 next week.
Further updates will be provided as the project progresses.
Image 1 - New media installed into Cell 1. Image 2 - Digger operating in Cell 2.
